Punch KEL-FW
| Part No. | 80100 |
| EAN | 4251269335099 |
| Package quantity | 1 |
| Number of centre punches | 4 |
| Thread UNF | 19 mm |
| Punching material | Plastic, Mild steel (St) |
| Max. wall thickness | 2 mm |
available
-
Products
?
Hydraulic punch drivers & DIN rail cutters
?
Punches CONFiX?
Punches CONFiX?
for CONFiX? bulkhead fittings, for steel, aluminium, stainless steel
These punches can be used to punch the special cutout shapes for the KEL-FW bulkhead fittings.
For max. 2 mm stainless steel (V2A versions), sheet steel, aluminium and plastic.
The punches are suitable for the hand hydraulic punch driver and the hydraulic foot pump. For the punches, we only recommend the hydraulic foot pump.

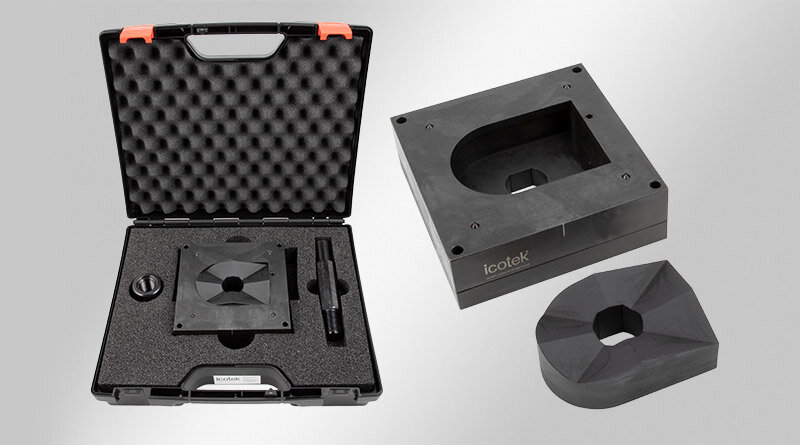

Scope of delivery:
- Punch, die, counter nut and draw stud
- robust plastic storage case
Specifications
| Material | Steel, hardened and burnished |
Advantages & benefits
- For the special cut-out shapes for KEL-FW
- High-quality padded transport case
- Suitable for hydraulic punch drivers by icotek or other manufacturers
Product types & sizes
Punch KEL-FW V2A
| Part No. | 80194 |
| EAN | 4251269335105 |
| Package quantity | 1 |
| Number of centre punches | 4 |
| Thread UNF | 19 mm |
| Punching material | Stainless steel (V2A) |
| Max. wall thickness | 2 mm |
available
You haven't found anything suitable yet?
Try the ProductFinderAssembly video
Convince yourself of the simple and time-saving assembly of our products.
Watch the assembly video!
Suitable for:
KEL-FW
Split bulkhead for 90° cable entry, IP65
KT grommet based bulkhead for 90° preassembled cable transit for cable diameters up to 35 mm and a large bending radius (r max. = 150 mm).
Punch drivers
Punch driver sets
Hydraulic punch driver for cut-outs on V2A stainless steel, sheet steel, aluminium or plastics. Suitable for round and rectangular punches. Also available with knockout die sets metric M16 - M63.
